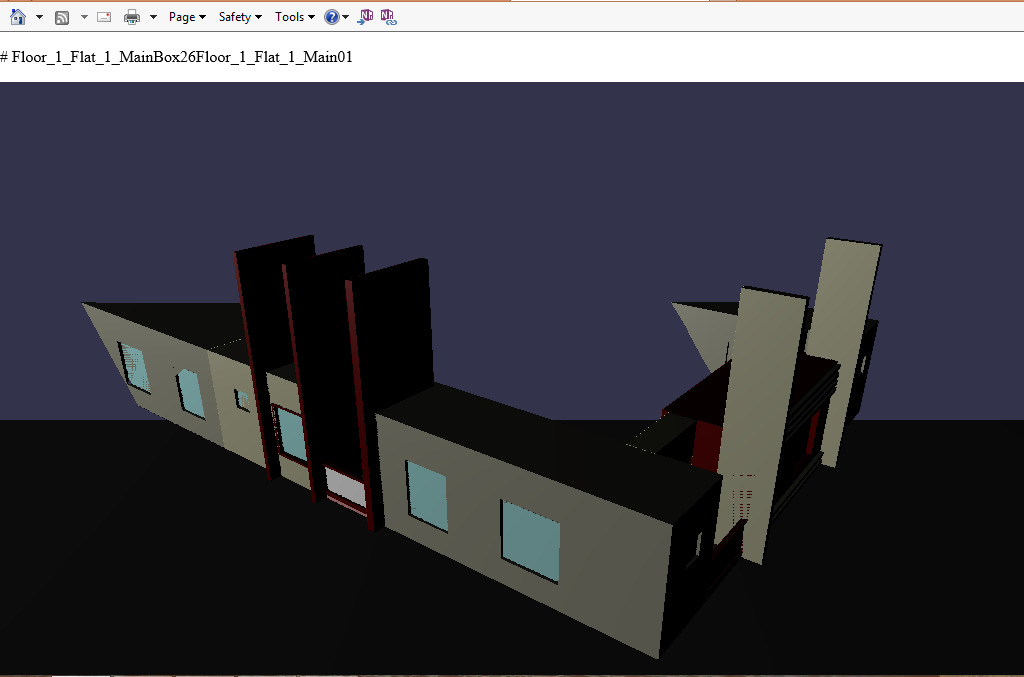

shaharyar.ahmed Posted January 19, 2014 Share Posted January 19, 2014 I've created a scene in 3dsmax and exported it to .obj and then converted it to .babylon and then uploaded it to 000webhost.com. Problems: 1. It mirrors all the objects, I don't know it is the export problem or conversion problem.2. It jerks on some of the planes in the scene.3. Visibility problem on my sever. I don't know what to call it. Problem 1: Here is the 3dsmax screen shot, but in the real scene its all mirrored: Problem 2: It almost works fine on sandbox, but little bit jerking on some of the windows of the house in the scene. Problem 3:The real visibility problem is here, on my server: Check yourself here Quote Link to comment Share on other sites More sharing options...
Dad72 Posted January 19, 2014 Share Posted January 19, 2014 It seems linked to bugs that I posted with textures black and others on materials. Quote Link to comment Share on other sites More sharing options...
shaharyar.ahmed Posted January 19, 2014 Author Share Posted January 19, 2014 Actually I've solved the 3rd problem by reducing the sizes of objects. But problem 1 and 2 still stands. and there is no materials in the scene. These all are simple objects. Quote Link to comment Share on other sites More sharing options...
Nico Posted January 19, 2014 Share Posted January 19, 2014 It's like you've got a problem with axis, can't you specify them while exporting to .obj in 3ds Max ? For problem 3 you need to increase your camera maxZ. gwenael 1 Quote Link to comment Share on other sites More sharing options...
shaharyar.ahmed Posted January 19, 2014 Author Share Posted January 19, 2014 It's like you've got a problem with axis, can't you specify them while exporting to .obj in 3ds Max ? Where will I specify the coordinates while exporting them? Quote Link to comment Share on other sites More sharing options...
Nico Posted January 19, 2014 Share Posted January 19, 2014 I've never used obj exporter, and I can't test on 3ds Max until monday, but for some exporters you can specify axis before click on export (up axis and forward axis on a left tab menu if I remember right). Quote Link to comment Share on other sites More sharing options...
Denis2222 Posted January 19, 2014 Share Posted January 19, 2014 seems model scale problem ? huge ? I see too for the mesh bug , it can need to convert all polygon to Triangle before export to .babylon ( From Lightwave modeler SHIFT+T ) Quote Link to comment Share on other sites More sharing options...
shaharyar.ahmed Posted January 19, 2014 Author Share Posted January 19, 2014 There is no axis specification settings I found while exporting to .obj. But there is an option for faces and there are three types. 1. Triangles2. Quads3. Polygons Which one should I choose? Quote Link to comment Share on other sites More sharing options...
Dad72 Posted January 19, 2014 Share Posted January 19, 2014 Triangles It seems to me. Quote Link to comment Share on other sites More sharing options...
Nico Posted January 19, 2014 Share Posted January 19, 2014 I don't think one of these option can solve the problem, I don't know what it will change.I will look at this problem on monday, I don't have a max install right now :/ Quote Link to comment Share on other sites More sharing options...

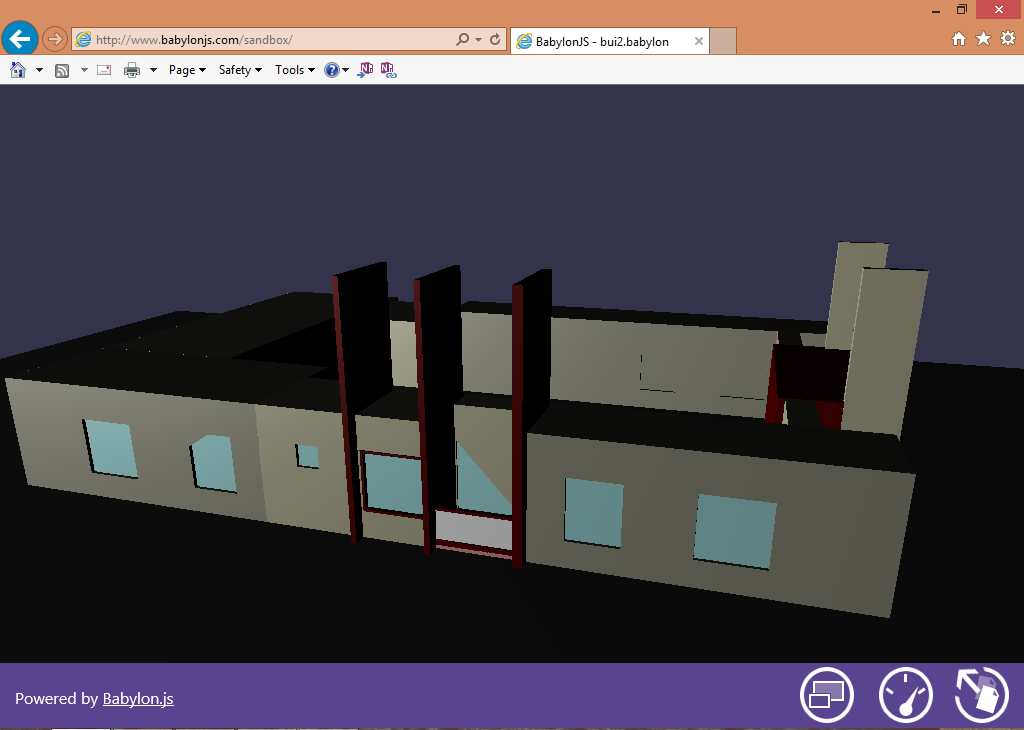

shaharyar.ahmed Posted January 19, 2014 Author Share Posted January 19, 2014 Wow !! Choosing Triangles solved the 2nd problem But 1st one still unsolved. I couldn't figure out why it mirrors the whole scene... Results are here Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted January 19, 2014 Share Posted January 19, 2014 What do you mean by mirrored? I have a cool scene that seems to work here: Quote Link to comment Share on other sites More sharing options...

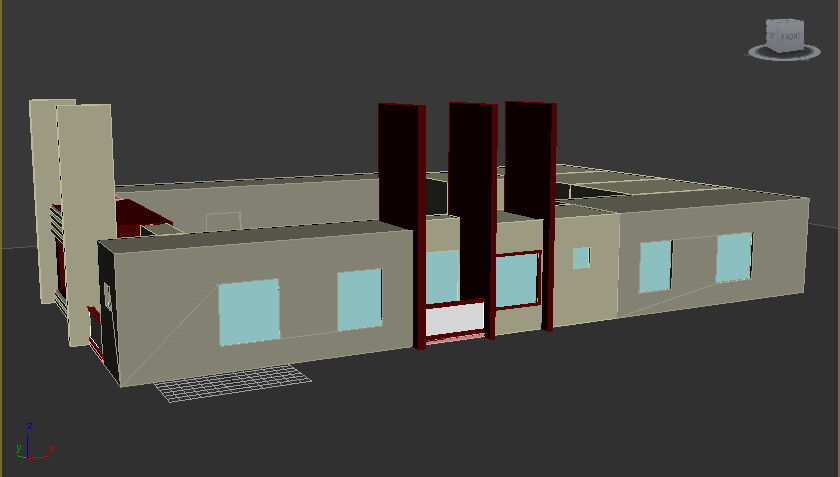

shaharyar.ahmed Posted January 19, 2014 Author Share Posted January 19, 2014 By word mirrored I mean that the whole scene is flipped. I think its hard to explain in words Here is the original scene in 3Dsmax: here is the babylon file: Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted January 20, 2014 Share Posted January 20, 2014 Oh yes I see now How do you generate your .babylon file? Quote Link to comment Share on other sites More sharing options...

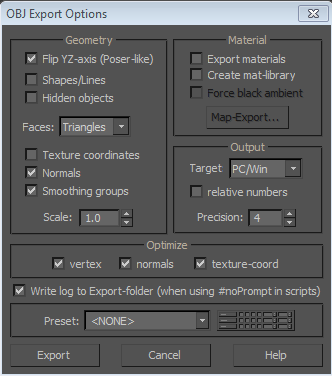

shaharyar.ahmed Posted January 20, 2014 Author Share Posted January 20, 2014 I export the scene to .obj with following settings: Then I make a zip file of both of them (.obj and .mtl files) and convert them to .babylon from your official online converter. I've also tried unchecking Flip YZ-axis (Poser-like) but it showed very awkward results. Quote Link to comment Share on other sites More sharing options...
gwenael Posted January 20, 2014 Share Posted January 20, 2014 For me Nico is right about axis. Nico 1 Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted January 20, 2014 Share Posted January 20, 2014 Could you try with the local converter:https://github.com/BabylonJS/Babylon.js/tree/master/Exporters/XNA%20-%20OBJ It has a /rh command line option to revert axis. Quote Link to comment Share on other sites More sharing options...
