solved Button dis-connected

[JCPalmer]

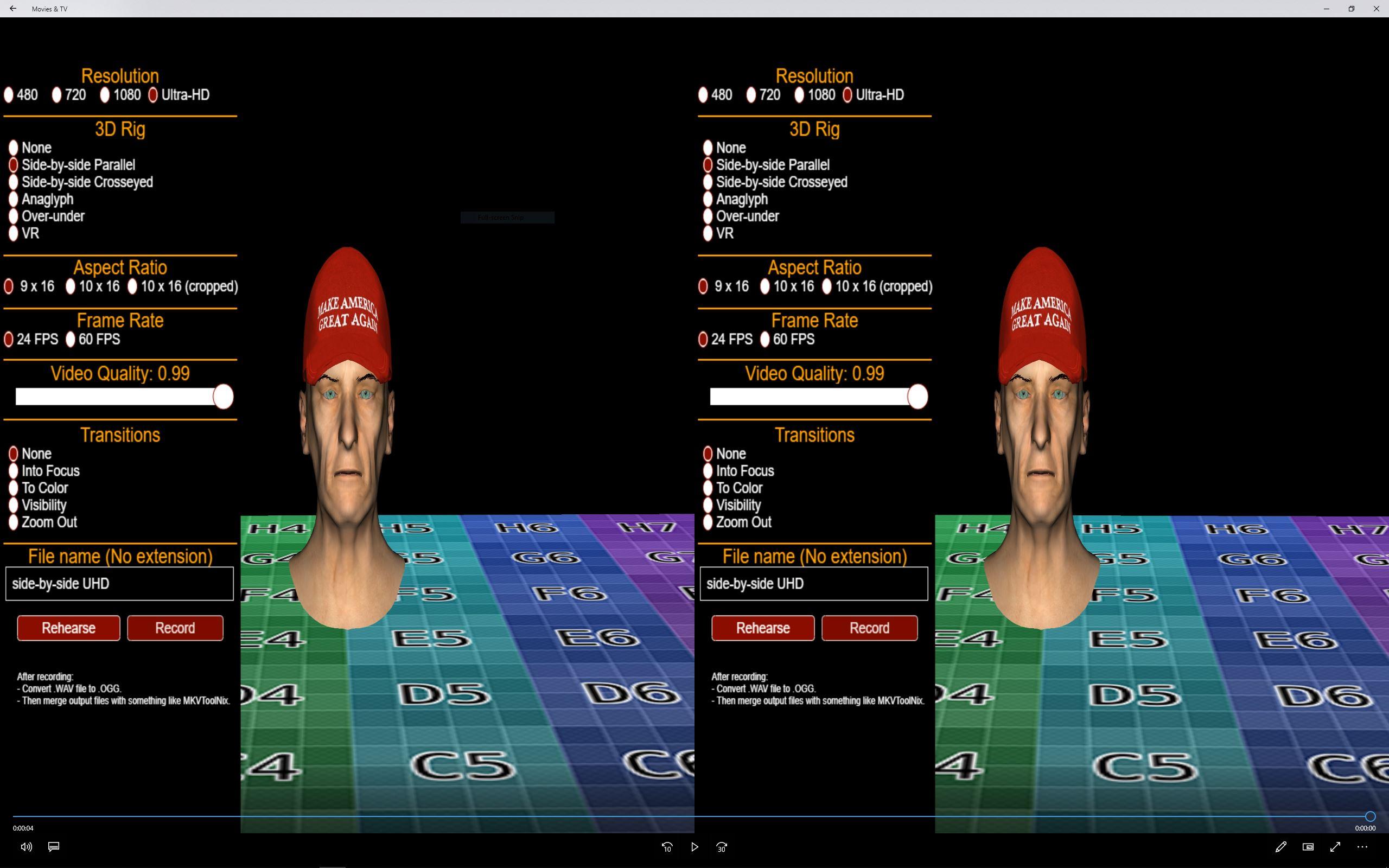

I have made a form for inputting parameters for webm audio/video recordings.  I have broken out the top level StackPanel apart from the full screen AdvancedDynamicTexture.  When either the "Rehearse" or "Record" buttons are pressed, you cannot still have the form visible or this happens:

Clearly not acceptable to be in the video itself, & a little annoying for rehearsing.  The only way I found to temporarily get rid of it was to dispose the texture.  After the scene is done, I took the StackPanel and put it in a new AdvancedDynamicTexture, just 2 lines.  The buttons are connected to NOTHING now though.

Using a Mesh for the texture will allow it to be hidden, but then I need a second camera in ortho mode & setup layer masks.  Is there any way to avoid going that route?



[aWeirdo]

Hi @JCPalmer
If you put it all inside a container, you can simply do container.isVisible = boolean;

Example structure;
advancedDynamicTexture
  - BABYLON.GUI.Container
    - Stackpanel
      - Other controls

[JCPalmer]

advancedDynamicTexture does not have a isVisible, but StackPanel does.  Will have to see what happens if I hide the top level StackPanel

[JCPalmer]

Yep, it is completely gone when hiding the StackPanel, and when it is visible again, the buttons still work!

[Dad72]

We can also play with the layerMask on advancedDynamicTexture and set the value to 0 to hide it

advancedDynamicTexture.layer.layerMask = 0; // hide GUI

advancedDynamicTexture.layer.layerMask = 1; // show GUI

It works well for me

[JCPalmer]

@dad72, always good to have a number of ways of equal effort.  From a tie breaker standpoint, the code reads slightly more straight forward by setting the visibility of the top level StackPanel..  Though I suppose the downside of that is you have to have a top level control.  I definitely need one anyway, since I need vertical stacking with some horizontal.
