Mesh moved when exporting in 3DS max

Recommended Posts


I've a problem when exporting from 3DS max to .babylon. In the 3DS max the mesh and in the BabylonJS Sandbox is placed correctly, but when I open the exported with my code, that mesh is placed somewhere else.

My code (It's in Angular 6, but with without Angular happens the same)

  if (BABYLON.Engine.isSupported()) {

    BABYLON.Engine.ShadersRepository = '/Babylon/Shaders/';

    const canvas = this.el.nativeElement;
    const engine = new BABYLON.Engine(canvas, false);

    // Resize
    window.addEventListener('resize', function () {

    // Scene, light and camera
    const scene = new BABYLON.Scene(engine);

    const light = new BABYLON.HemisphericLight('light', new BABYLON.Vector3(0, 1, 0), scene);
    const camera = new BABYLON.ArcRotateCamera('Camera', Math.PI / 2, Math.PI / 2, 50, new BABYLON.Vector3(0, 0, 0), scene);
    camera.inertia = 0.2;
    // Assets manager
    const assetsManager = new BABYLON.AssetsManager(scene);

    const meshTask = assetsManager.addMeshTask('sceneTask', '', '', 'http://localhost/index.php');

    // You can handle success and error on a per-task basis (onSuccess, onError)
    meshTask.onSuccess = function (task) {
        task.loadedMeshes[0].position = new BABYLON.Vector3(0, 0, 0);
        for (let i = 0; i < task.loadedMeshes.length; i++){
          task.loadedMeshes[i].isPickable = true;

    // But you can also do it on the assets manager itself (onTaskSuccess, onTaskError)
    assetsManager.onTaskError = function (task) {
        console.log('error while loading ' + task.name);

    scene.onPointerDown = function (evt, pick) {
      if (pick.hit){

    assetsManager.onFinish = function (tasks) {

      engine.runRenderLoop(function () {

    // Can now change loading background color:
    engine.loadingUIBackgroundColor = '#03528f';

    // Just call load to initiate the loading sequence

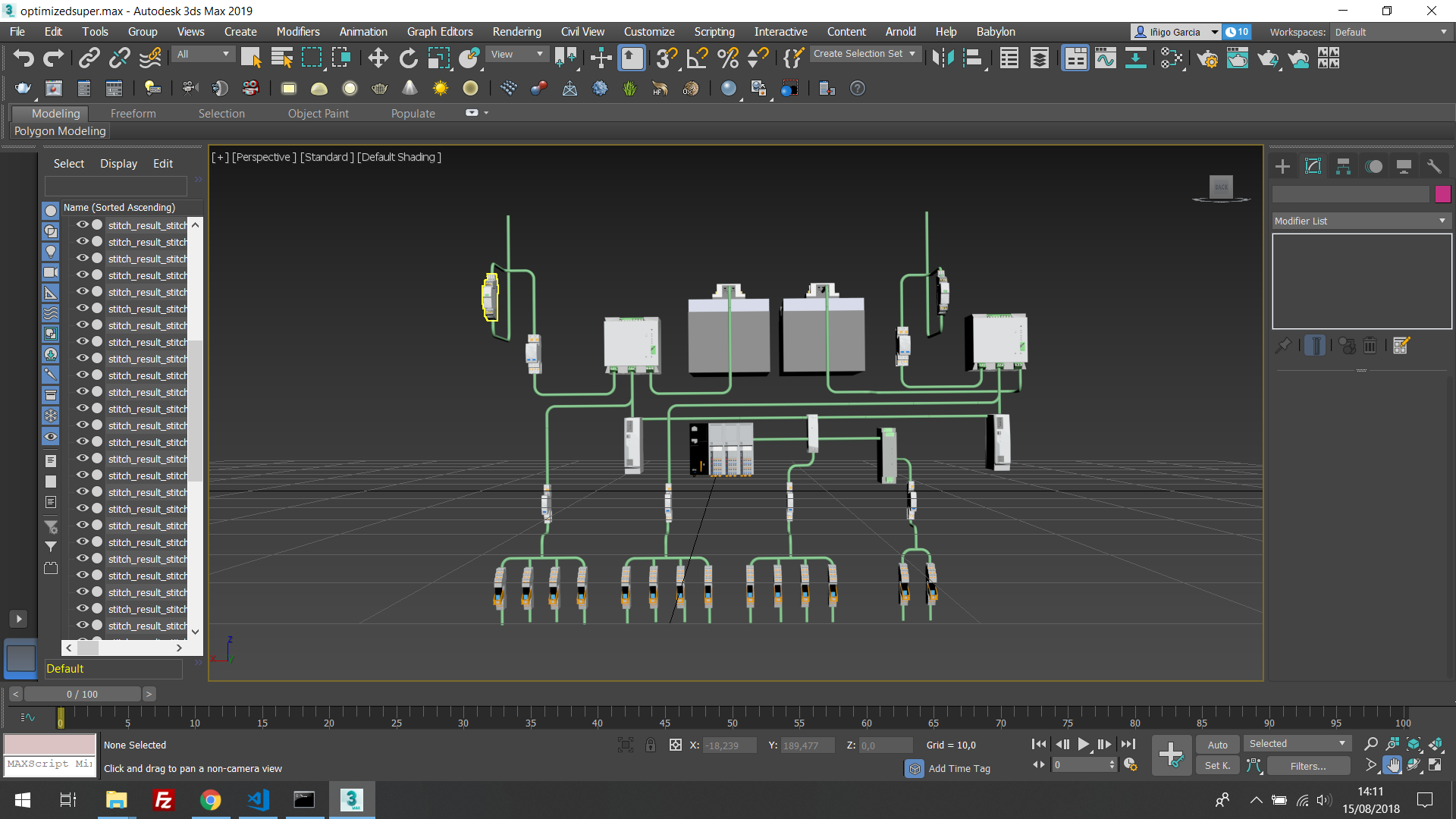

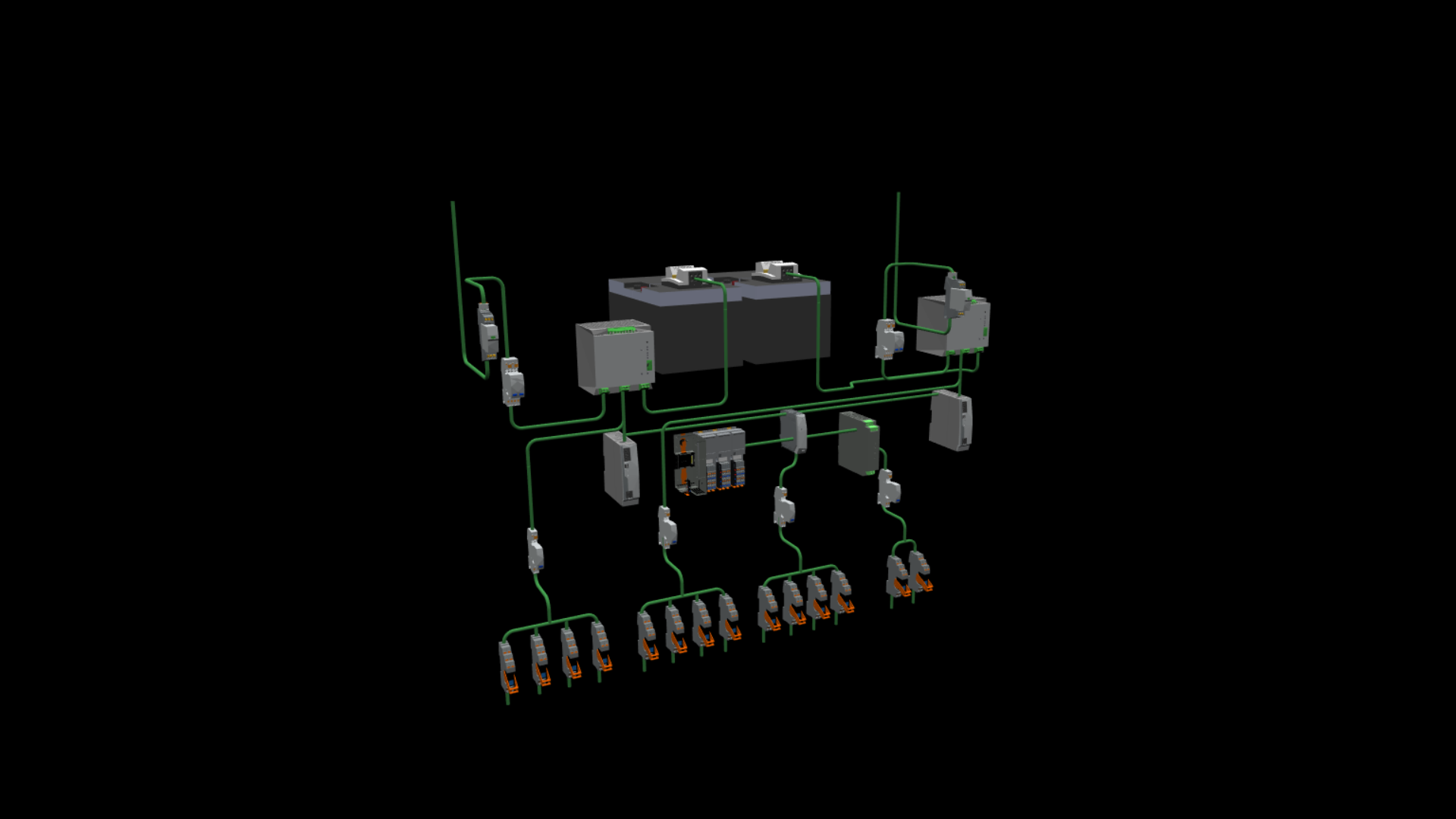

The object in SandBox and 3DS max, where it is placed correctly:

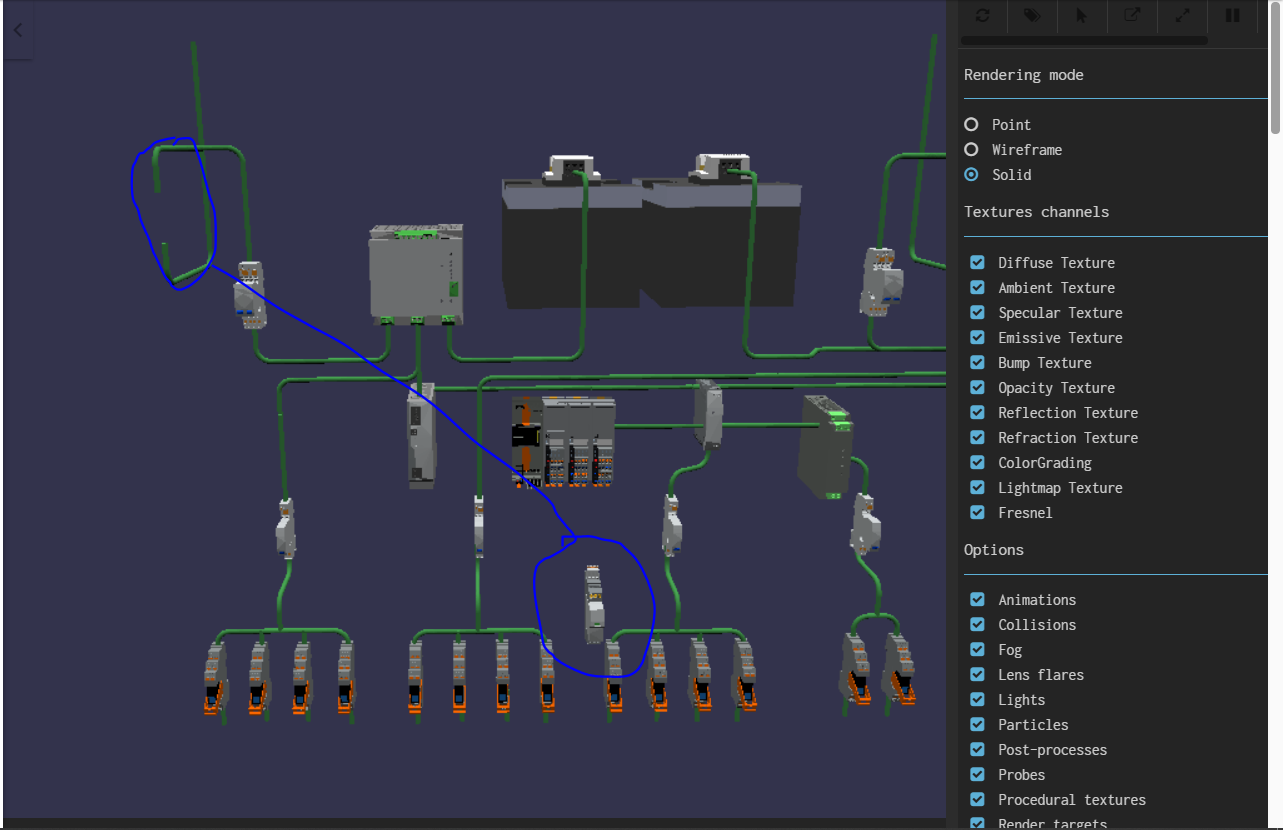

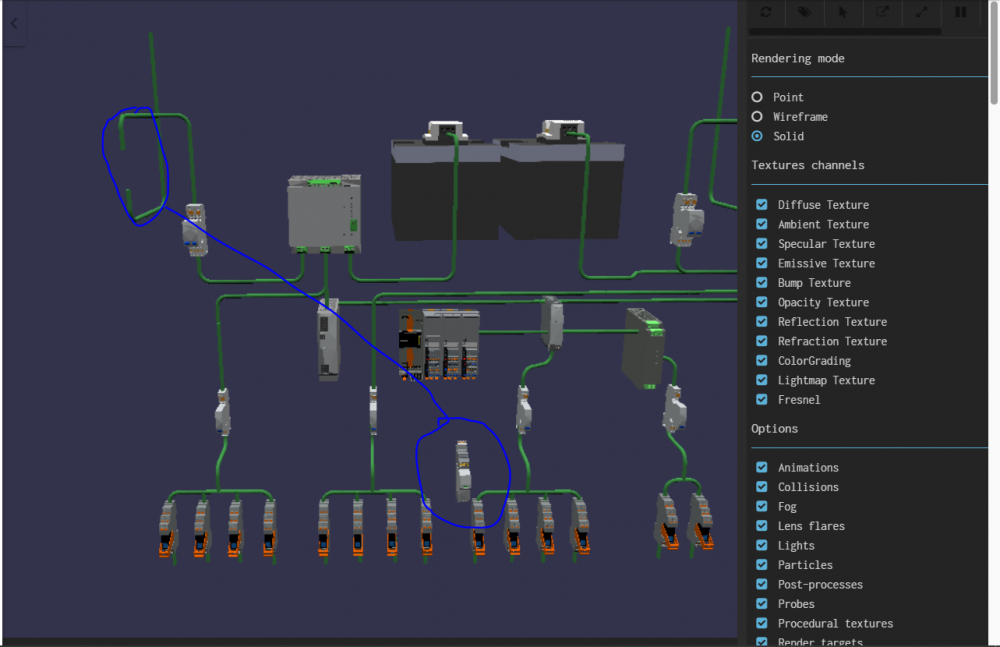

And the model opened with BabylonJs where the object is moved:




Thanks for your time :)
