KevinBLT

Self shadowing 1 Mesh (with submeshes)

Recommended Posts

Hello there,



sorry I didn't find any topic (or searched with the wrong words) related to this.

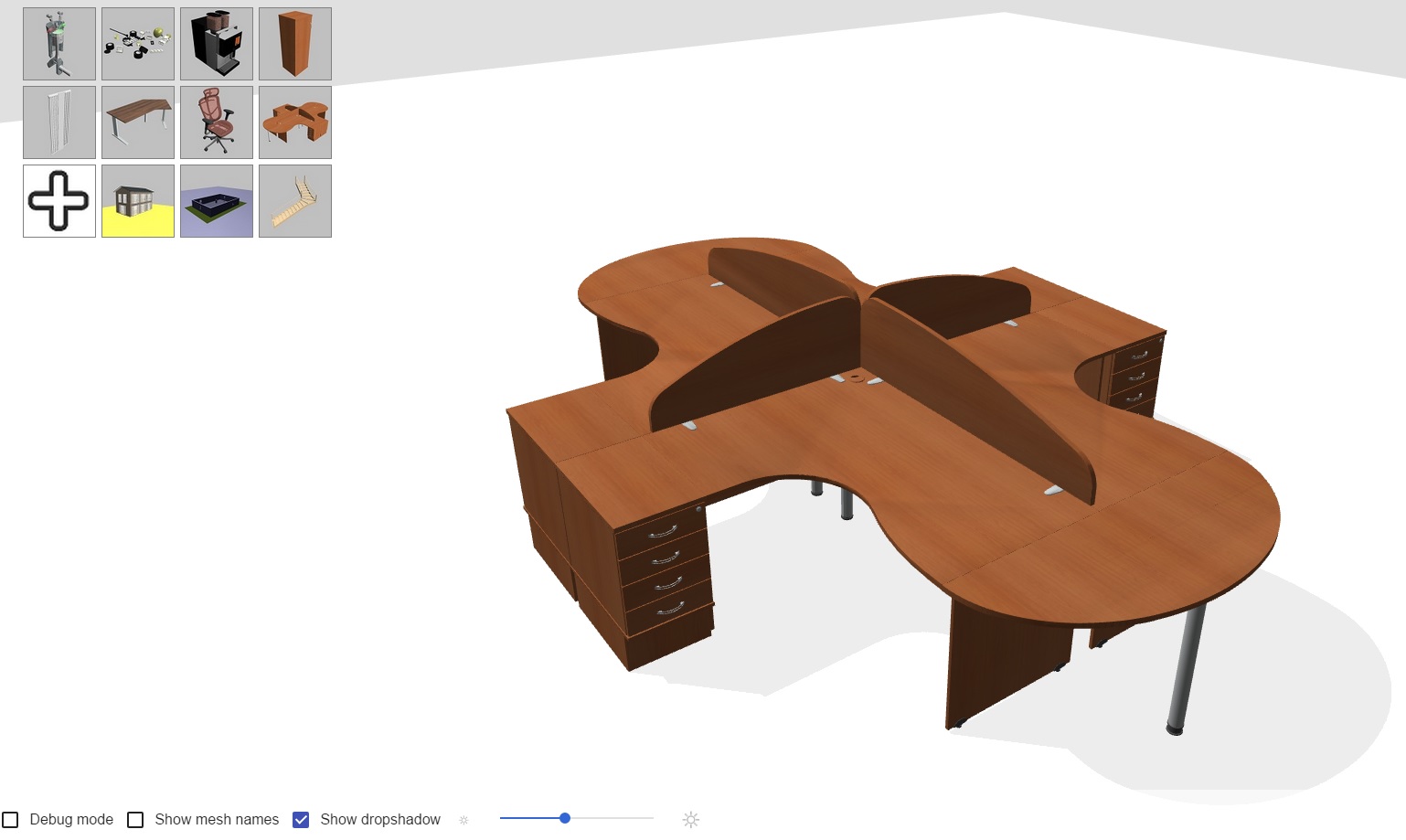

So look at the screenshot attached.

I have this simple scene with just one mesh.

This mesh has submeshes.

I also have two hemispheric lights and one directional light.

The ground receives shadow. Ok.

But the mesh itself always gets black when "receiveShadow" is set to true.



I tried bias value, every filter. Other light conditions. Nothing helped.

So I always can't figure out what the shadowgenerator wants.

How can I achieve that the desk throws shadows on itself?



Thanks everyone for help!



Kevin

post-14468-0-86195200-1436444954_thumb.j

Share this post


Link to post
Share on other sites

Using useBlurVarianceShadowMap, eh? I ran into that, too and had to accept that it's just not possible at the moment to use useBlurVarianceShadowMap, receiveShadows and cast Shadows at the same time. At least that's how I remember how it went. That was a big bummer. :( Maybe anybody got a fix this time! :D



Here a little playground to show the problem (I hope I got it right and that's really waht you are talking about ;) )

http://www.babylonjs-playground.com/#VCXGW



PS: Remove shadowGenerator.useBlurVarianceShadowMap = true; OR sphere.receiveShadows = true; to make it work.

Share this post


Link to post
Share on other sites

haha, Ice, you're the fastest gun this side of the Pecos!  :)

http://playground.babylonjs.com/#PRPAS

Mine is fancier... and I used a real subMeshed mesh.   neener.  :)

But yep, activate line 110 in my demo, and the box darkens.  I wonder what is casting a shadow over the box.  Surely, it is some evil, dark, sinister entity.

(Friggin' quickdraws, pft.)  ;)

Share this post


Link to post
Share on other sites

My code:

var MeshBoundBox = cMesh.getBoundingInfo().boundingBox;var Width        = MeshBoundBox.maximumWorld.x - MeshBoundBox.minimumWorld.x;var Depth        = MeshBoundBox.maximumWorld.z - MeshBoundBox.minimumWorld.z;var CenterX      = MeshBoundBox.maximumWorld.x + Width/2;var CenterZ      = MeshBoundBox.maximumWorld.z + Depth/2;var GroundSize   = Math.max(Width,Depth) * 6;          light3           = new BABYLON.DirectionalLight("dir01", new BABYLON.Vector3(0, 0, 0), scene);light3.position  = new BABYLON.Vector3(CenterX + 5, MeshBoundBox.maximumWorld.y + 10, CenterZ + 5);light3.intensity = parseFloat(document.getElementById("BrightnessSlider").value);light3.setDirectionToTarget(new BABYLON.Vector3(0,0,0));          ground = BABYLON.Mesh.CreateGround("ground", GroundSize, GroundSize, 2, scene);ground.position.y = MeshBoundBox.minimumWorld.y;ground.receiveShadows = true;ground.material = new BABYLON.StandardMaterial("texture1", scene);ground.material.specularColor.r = ground.material.specularColor.g = ground.material.specularColor.b = 0;          shadowGenerator = new BABYLON.ShadowGenerator(1024, light3);shadowGenerator.getShadowMap().renderList.push(cMesh);//shadowGenerator.usePoissonSampling = true;shadowGenerator.useVarianceShadowMap = true;//shadowGenerator.useBlurVarianceShadowMap = true;       cMesh.receiveShadows = true;light1.intensity = light2.intensity = 0.8;

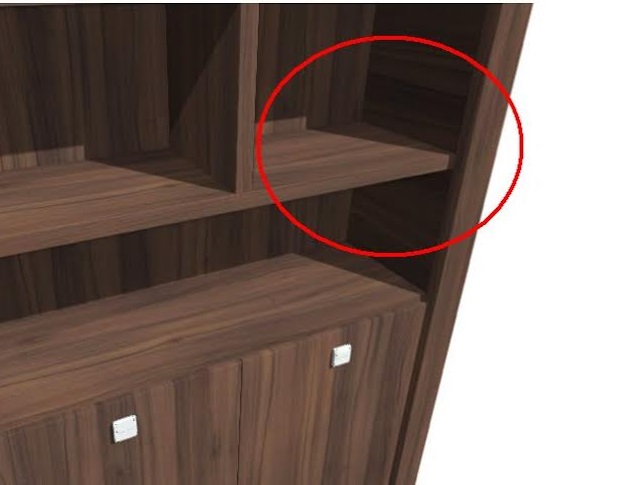

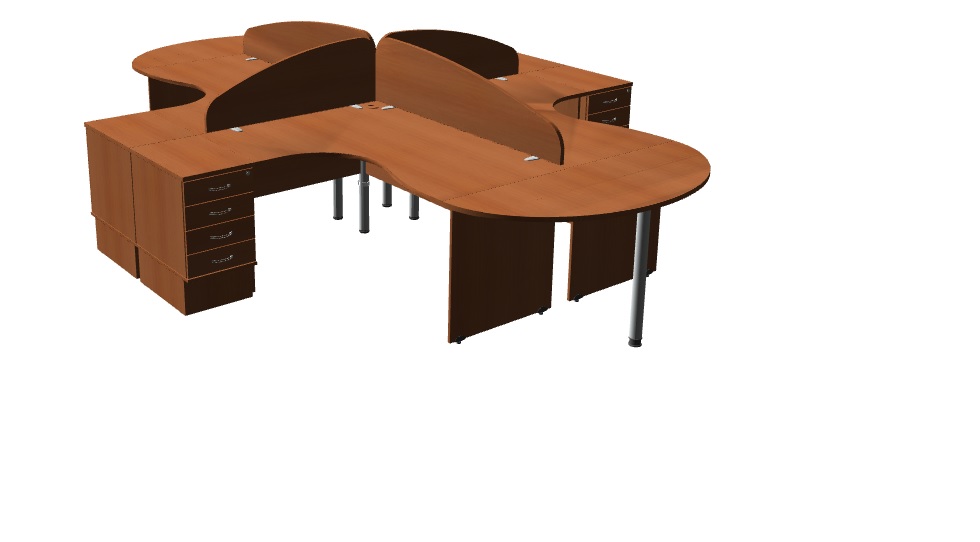

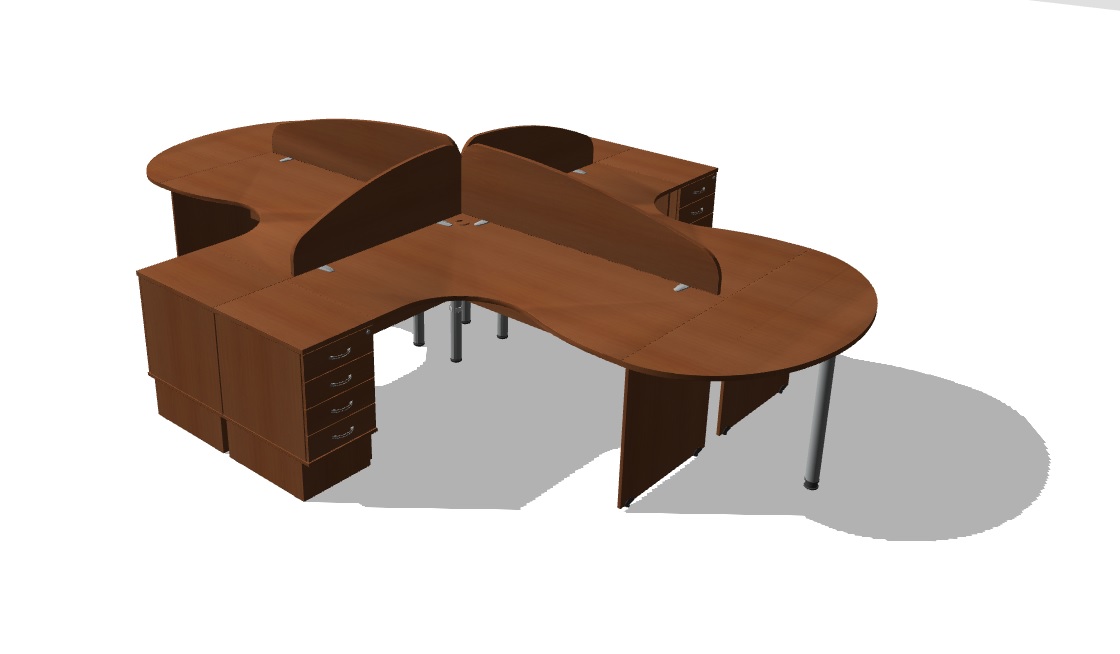

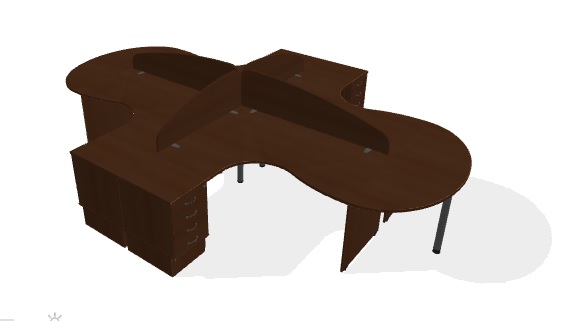

results in this (1) and (2) is what I want to receive. Hmmmmm :-/



Share this post


Link to post
Share on other sites

Poisonsampling seems to not producing any shadow at all :-(



Or is there something completly wrong?



This function activates the shadow (Checkbox), where "cMesh" is the current loaded mesh (the desk in this case)

function onShowDropShadowCheckBoxChanged() {  if (!cMesh) this.checked = false;          if (this.checked) {    var MeshBoundBox = cMesh.getBoundingInfo().boundingBox;    var Width        = MeshBoundBox.maximumWorld.x - MeshBoundBox.minimumWorld.x;    var Depth        = MeshBoundBox.maximumWorld.z - MeshBoundBox.minimumWorld.z;    var CenterX      = MeshBoundBox.maximumWorld.x + Width/2;    var CenterZ      = MeshBoundBox.maximumWorld.z + Depth/2;    var GroundSize   = Math.max(Width,Depth) * 6;              light3           = new BABYLON.DirectionalLight("dir01", new BABYLON.Vector3(0, 0, 0), scene);    light3.position  = new BABYLON.Vector3(CenterX + 5, MeshBoundBox.maximumWorld.y + 10, CenterZ + 5);    light3.intensity = parseFloat(document.getElementById("BrightnessSlider").value);    light3.setDirectionToTarget(new BABYLON.Vector3(0,0,0));              ground = BABYLON.Mesh.CreateGround("ground", GroundSize, GroundSize, 2, scene);    ground.position.y = MeshBoundBox.minimumWorld.y;    ground.receiveShadows = true;    ground.material = new BABYLON.StandardMaterial("texture1", scene);    ground.material.specularColor.r = ground.material.specularColor.g = ground.material.specularColor.b = 0;              shadowGenerator = new BABYLON.ShadowGenerator(1024, light3);    shadowGenerator.getShadowMap().renderList.push(cMesh);    shadowGenerator.usePoissonSampling = true;    //shadowGenerator.useVarianceShadowMap = true;    //shadowGenerator.useBlurVarianceShadowMap = true;	            cMesh.receiveShadows = true;    light1.intensity = light2.intensity = 0.6;  } else {    if (light3 && ground && shadowGenerator) {       light3.dispose();       ground.dispose();       shadowGenerator.dispose();                   light3          = false;       ground          = false;       shadowGenerator = false;                   light1.intensity = light2.intensity = parseFloat(document.getElementById("BrightnessSlider").value);     }   }}


Share this post


Link to post
Share on other sites
the default value is not already 0.01, unless this has been changing. it should not try to put a value of 0.

I feel that one has to regularly 0 to bias, why not put this default value 0 to bias?

Share this post


Link to post
Share on other sites

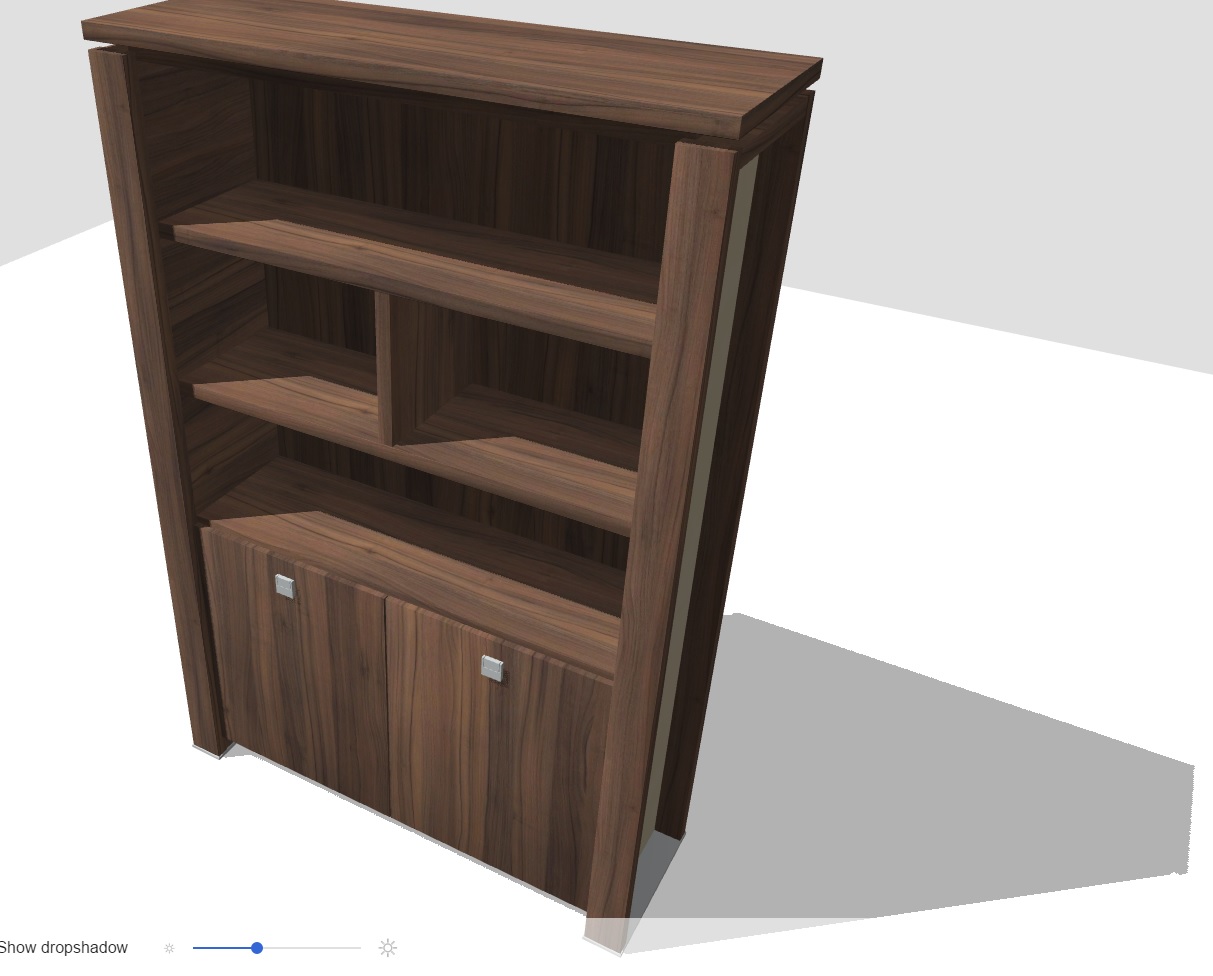

It's working with the desk now.

I've set the value to 0.00000065.



I achieve the same result now on the shelf.



I just need to adjust the bias relative to object size.

But i seems to work now.



Thanks everyone!



:-)

post-14468-0-64765000-1436967184_thumb.j
