How to build a babylon file,please?

[dongchai]

I didn't understand how to export a babylon file.

for example I have a fbx file called "car.fbx"

then i run command line run FbxExporter.exe ./car.fbx ./

FbxExporter.exe /m:"car.fbx" also not work

how to export please?

[dongchai]

what 's the detail to export a babylon file please..I ve no idea how to do this

[adam]

I have never used the exporter, but instructions are here:

https://github.com/BabylonJS/Babylon.js/tree/master/Exporters/FBX#usage

and prerequisites:

https://github.com/BabylonJS/Babylon.js/tree/master/Exporters/FBX#prerequisites

[dongchai]

5 minutes ago, adam said:

I have never used the exporter, but instructions are here:

https://github.com/BabylonJS/Babylon.js/tree/master/Exporters/FBX#usage

hi~buddy!I know this.but I'm asking for using detail

for example,I have a file called "car.fbx" how can I export it into "car.babylon"?

the cmd command would be " FbxExporter.exe ./car.fbx ./ " or somthing else?

thank you for reply

[Boz]

The link says :  Usage --> FbxExporter.exe "fbx file" "outdir" [/fps:60|30|24] [/skipemptynodes]

In your example, "FbxExporter.exe ./car.fbx ./" should work



(prerequisites are "Visual C++ 2015 redistribuable package")

[dongchai]

11 minutes ago, Pouet said:

The link says :  Usage --> FbxExporter.exe "fbx file" "outdir" [/fps:60|30|24] [/skipemptynodes]

In your example, "FbxExporter.exe ./car.fbx ./" should work



(prerequisites are "Visual C++ 2015 redistribuable package")

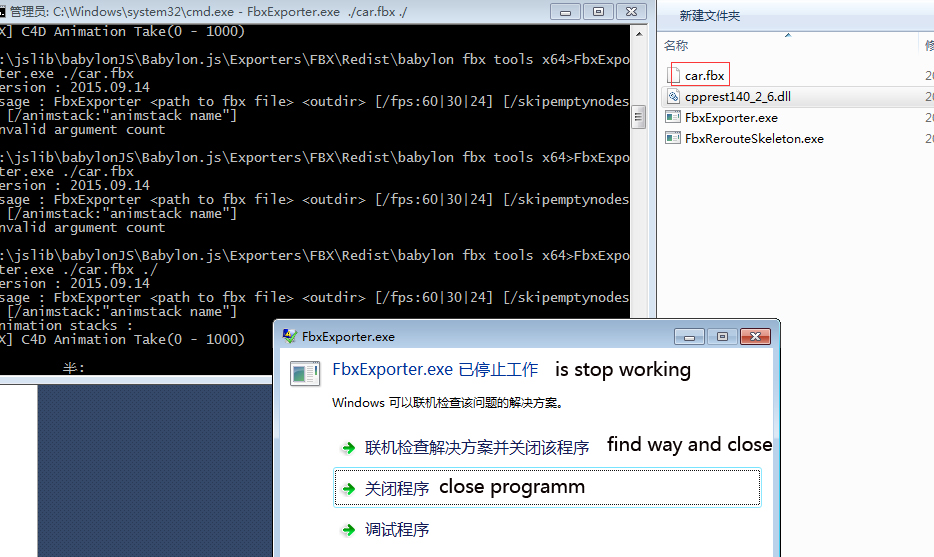

But I got this...it seems to be some thing wrong happend... I've no idea how to fix this..

[adam]

Create a folder to output to in the folder that your fbx is in (just call it output).  Then try using this command:

FbxExporter.exe car.fbx output

you might need to use /skipemptynodes



[dongchai]

2 minutes ago, adam said:

Create a folder to output to in the folder that your fbx is in (just call it output).  Then try using this command:

FbxExporter.exe car.fbx output



thank you, still got nothing but that error message above...



[Boz]

Yes, as Adam said, you can try "FbxExporter.exe ./car.fbx ./ /skipemptynodes"

If it still crashes, make sure you have  Visual C++ 2015 redistribuable package installed. if yes, then it can be a problem with exporter

[Romanichel_2.0]

As the exporter produces some output (the list of animation stacks) I suppose the prerequisites are there. Can you send me the fbx at simon.ferquel at Hotmail.fr ? I'll take a look on a debug build.

Simon



[dongchai]

5 hours ago, Romanichel_2.0 said:

As the exporter produces some output (the list of animation stacks) I suppose the prerequisites are there. Can you send me the fbx at simon.ferquel at Hotmail.fr ? I'll take a look on a debug build.

Simon



I installed   Visual C++ 2015 redistribuable package ,but still error..here is my file take a look at it if you are free thank you all very muchbabylon fbx tools x64.zip

[dongchai]

Can anybody help me to export this fbx file?and what promble with it?

I tried export every versions of c4d but no one succesed..

car_fbx.zip

[adam]

Try loading it in Blender and then use the BJS blender exporter.

https://github.com/BabylonJS/Babylon.js/tree/master/Exporters/Blender

[dongchai]

3 hours ago, adam said:

Try loading it in Blender and then use the BJS blender exporter.

https://github.com/BabylonJS/Babylon.js/tree/master/Exporters/Blender

Finally I use unity3D done it! thank you all!

thanks for everybody here:).

I can do many more thing from now on.

[Romanichel_2.0]

Hi,

I just had a look at it, and the problem is that you don't have any material attached to your model.

I made a correction to the exporter to handle that case and updated the tool to use the latest fbx SDK. I'll make a PR of the FbxExporter later today.

Additionaly, there seems to be something wrong with your model normals.



Simon

[davrous]

Thank you @Romanichel_2.0 ! (definitely love your nickname :-))

[dongchai]

2 hours ago, Romanichel_2.0 said:

Hi,

I just had a look at it, and the problem is that you don't have any material attached to your model.

I made a correction to the exporter to handle that case and updated the tool to use the latest fbx SDK. I'll make a PR of the FbxExporter later today.

Additionaly, there seems to be something wrong with your model normals.



Simon

woo~！with greate honour and special thank!

[marc.]

On 7.5.2016 at 2:11 AM, dongchai said:

simon.ferquel at Hotmail.fr

can I asked you a question too?
