solved Doubt about inverted texture

[none-9999]

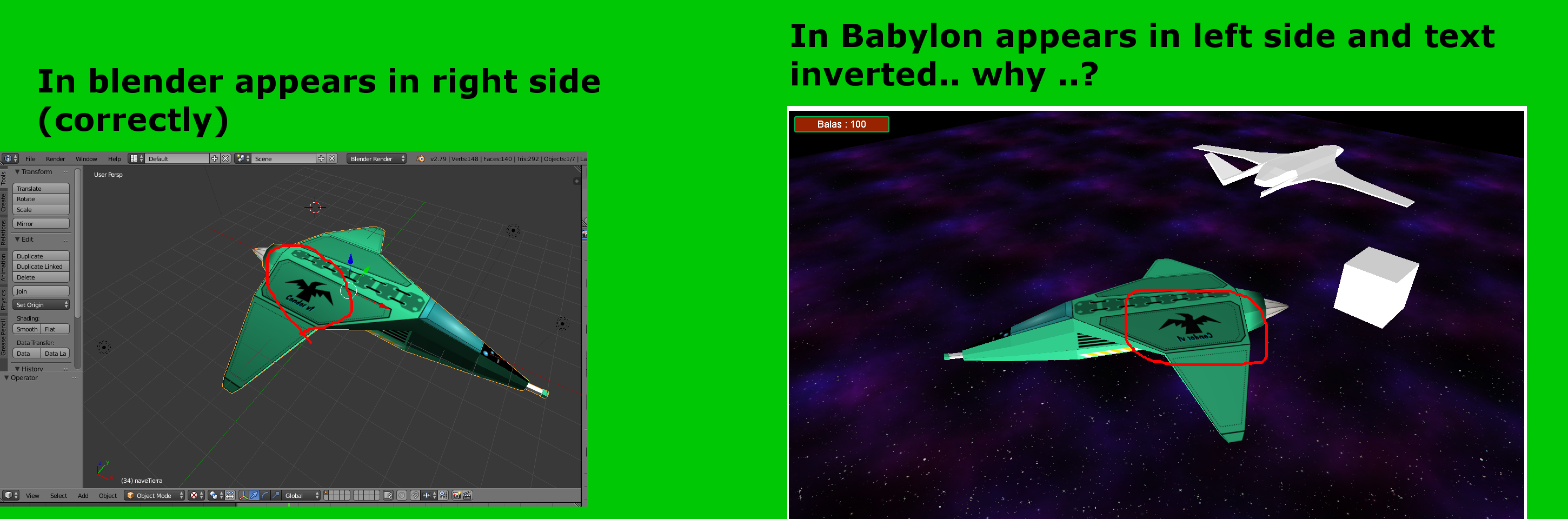

Hi for all, i have this situation, do not know why



my code for that material:

function Nave(name, textureMat){

    this.name = name;
    //after by constructor add the mes from .obj file.

    this.mesh ={};
    this.material= new BABYLON.StandardMaterial(this.name+"_material", scene);
    this.material.diffuseColor = new BABYLON.Color3(0.8, 0.8, 0.8);
    this.material.specularColor = new BABYLON.Color3(0.05, 0.05, 0.05);
    this.material.invertU = -1;
    if(textureMat != null){
        this.material.diffuseTexture = new BABYLON.Texture("texturas/"+textureMat, scene);
    }

//......

}

//in load of .obj file

BABYLON.SceneLoader.ImportMesh("","", "naveTierraSolo.obj", scene, function (meshes) {


         naves[0].mesh=meshes[0];
         carga.cargados +=1;

         naves[0].mesh.material = naves[0].material;

        //...

});

naves[0] = new Nave("shipPlayer", "naveTierraSolo.png");











[SinhNQ]

You can try:

if(textureMat != null){
    this.material.diffuseTexture = new BABYLON.Texture("texturas/"+textureMat, scene, false, false);
}



[Sebavan]

Is the invertU in your code intented ? This is not available on material and should be placed on the texture u scale.

[none-9999]

i tried :



this.material.diffuseTexture = new BABYLON.Texture("texturas/"+textureMat, scene, false, false);

 and



and tried with false,false;  false,true; true,false; true,true; and nothing

[none-9999]

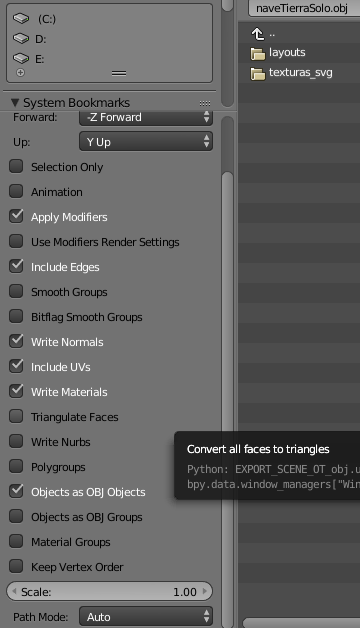

settings at the moment  export obj from blender

[Sebavan]

Can you try

material.diffuseTexture.uScale = -1; // Mirror Horizontally

material.diffuseTexture.vScale = -1; // Mirror Vertically

[none-9999]

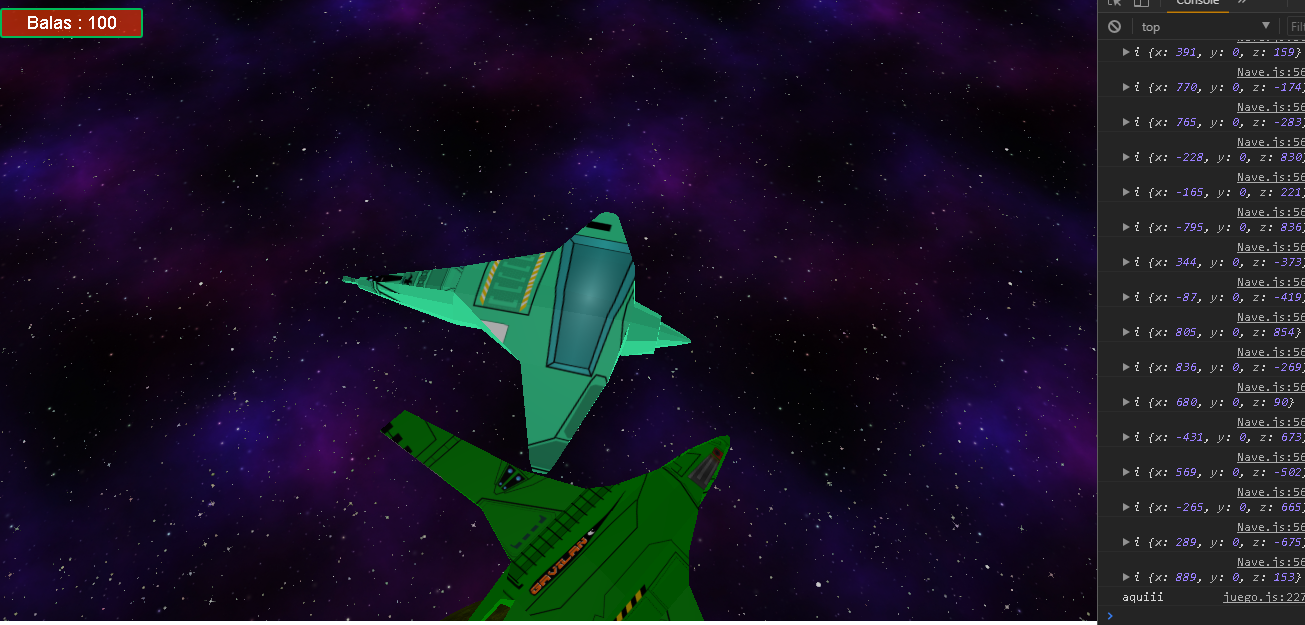

Hi, this happened :





//this.material.invertU = -1;
	if(textureMat != null){
		//this.material.diffuseTexture = new BABYLON.Texture("texturas/"+textureMat, scene);
		this.material.diffuseTexture = new BABYLON.Texture("texturas/"+textureMat, scene,true,true);
		this.material.diffuseTexture.uScale = -1; // Mirror Horizontally
		this.material.diffuseTexture.vScale = 1; // Mirror Vertically
	}

the import coordinates of blender .. maybe?

//load obj



BABYLON.SceneLoader.ImportMesh("","", "naveTierraSolo.obj", scene, function (meshes) {

			//console.log(meshes);
			naves[0].mesh=meshes[0];

			carga.cargados +=1;

			naves[0].mesh.material = naves[0].material;

			naves[0].mesh.rotation=new BABYLON.Vector3(0, Math.PI/4, 0);//to look at 0 degrees...
			naves[0].flash.parent=naves[0].mesh;

			camera = new BABYLON.UniversalCamera("UniversalCamera", new BABYLON.Vector3(-10, 50, -10), scene);
			camera.position.x = naves[0].mesh.position.x;
			camera.position.y = naves[0].mesh.position.y+vHol;
			camera.position.z = naves[0].mesh.position.z;
			camera.rotation=new BABYLON.Vector3(0, 0, 0);
			camera.attachControl(canvas, true);
			camera.setTarget(naves[0].mesh.position);

			naves[0].turbina = new BABYLON.ParticleSystem("particles", 200, scene);
			naves[0].turbina.particleTexture = new BABYLON.Texture("sprites/Flare.png", scene);
			naves[0].turbina.textureMask = new BABYLON.Color4(0.1, 0.8, 0.8, 1.0);

			naves[0].turbina.emitter = naves[0].mesh;
			naves[0].turbina.minEmitBox = new BABYLON.Vector3(-4, 0.3, 0); // Starting all from
			naves[0].turbina.maxEmitBox = new BABYLON.Vector3(-4, 0.3, 0); // To...

			naves[0].turbina.color1 = new BABYLON.Color4(0.7, 0.8, 1.0, 1.0);
			naves[0].turbina.color2 = new BABYLON.Color4(0.2, 0.5, 1.0, 1.0);
			naves[0].turbina.colorDead = new BABYLON.Color4(0, 0, 0.0, 0.0);

			naves[0].turbina.minSize = 2;
			naves[0].turbina.maxSize = 5;
			naves[0].turbina.targetStopDuration = 0.15;

			naves[0].turbina.minLifeTime = 0.1;
			naves[0].turbina.maxLifeTime = 0.4;
			naves[0].turbina.emitRate = 50;
			naves[0].turbina.blendMode = BABYLON.ParticleSystem.BLENDMODE_STANDARD;

		});

code to follow mouse

var mouseControl={mx:0, my:0, segx:0, segy:0, easing : 0.05}
var yo_mov={x:1, y:10, z:0, v:0.0, on:false, gra:0, rad:0.0, cuadr:0, nCuadr:0, radF:0}//my movement

//in init, features display (size and medium)
dPantalla.w = window.innerWidth;
dPantalla.h = window.innerHeight;
dPantalla.rx = ~~(dPantalla.w/2);
dPantalla.ry = ~~(dPantalla.h/2);

//event mousemove
canvas.addEventListener("mousemove", function (evt) {

	mouseControl.mx = evt.pageX;
	mouseControl.my = evt.pageY;

});


//in update

//follow mouse
mouseControl.segx += (mouseControl.mx - mouseControl.segx) * mouseControl.easing;
mouseControl.segy += (mouseControl.my - mouseControl.segy) * mouseControl.easing;

//get angle from betwen center and dot that follow at cursor
yo_mov.rad = Math.atan2(mouseControl.segy - dPantalla.ry, mouseControl.segx - dPantalla.rx);

if(yo_mov.rad < 0)yo_mov.rad+=(Math.PI*2);

 naves[0].mesh.rotation = new BABYLON.Vector3(0, yo_mov.rad+(Math.PI/4), 0);



[Sebavan]

Could you please create a new issue for the sprite, and try to repro in a playground ?

This can also come from the fact you are apply -1 for all the textures of your obj not the flipped one only.

[none-9999]

you can try in this url :



https://turret.000webhostapp.com/

[Pryme8]

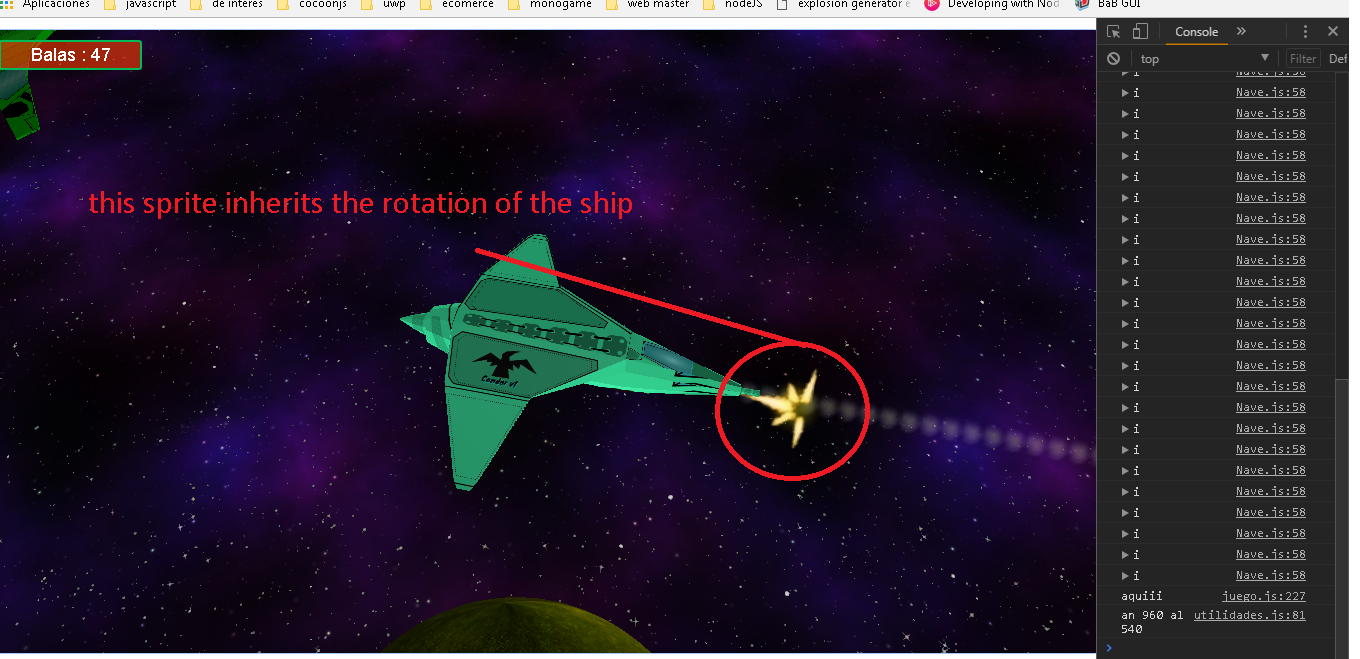

If the sprite is inheriting the meshes rotation then it sounds like it is a child of the mesh (which if its a bullet it should not be).

Did you figure out the UV problem?

[Sebavan]

@diyo-games debugging your full scene is not the friendliest way and won t help other forum readers.

Could you please create a babylon playground dedicated to your sprite issue and start a new thread as the texture rotation has been addressed ? this helps other user when they are looking for a similar issue.

[none-9999]

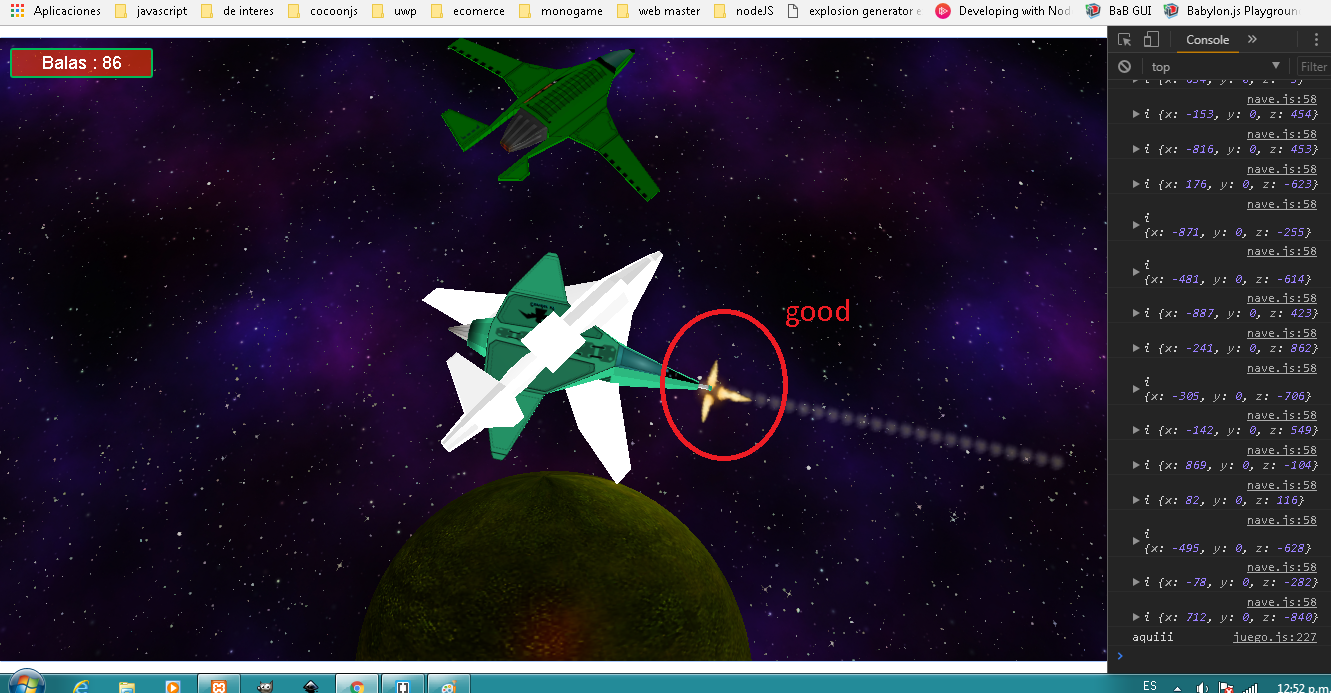

the problem is not the sprite, it is spinning well (or was spinning well), it is more a sign that something is wrong with the mesh of the ship, but the weird is like the mesh turns, but not the texture .. .



[none-9999]

25 minutes ago, Pryme8 said:

Si el sprite está heredando la rotación de mallas, parece que es un elemento secundario de la malla (que si no es una bala no debería ser).

¿Descubriste el problema UV?

I Did not understand

[Sebavan]

I can not see any issue. could you highlight with a picture maybe ?

[none-9999]

ok, I will go back to the beginning ..

[none-9999]

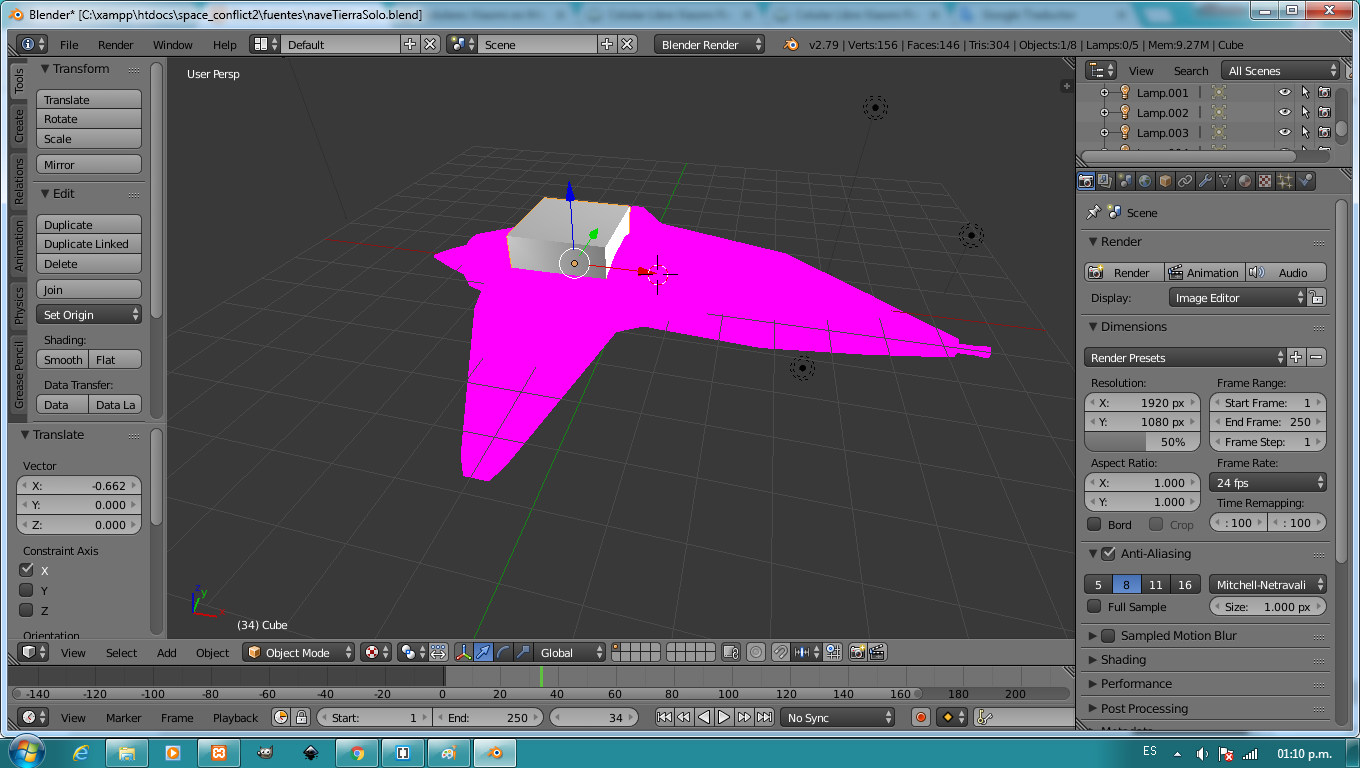

ok, now



the ship "class"



function Nave(name, textureMat, isMine){

	this.name = name;
	//after by constructor add the mes from .obj file.
	this.isMine = isMine;
	this.mesh ={};
	this.material= new BABYLON.StandardMaterial(this.name+"_material", scene);
	this.material.diffuseColor = new BABYLON.Color3(0.8, 0.8, 0.8);
	this.material.specularColor = new BABYLON.Color3(0.05, 0.05, 0.05);
	//this.material.invertU = -1;
	if(textureMat != null){
		//this.material.diffuseTexture = new BABYLON.Texture("texturas/"+textureMat, scene);
		this.material.diffuseTexture = new BABYLON.Texture("texturas/"+textureMat, scene);
		//this.material.diffuseTexture.uScale = -1; // Mirror Horizontally
		//this.material.diffuseTexture.vScale = 1; // Mirror Vertically
	}

//....

}

load .obj



BABYLON.SceneLoader.ImportMesh("","", "naveTierraSolo.obj", scene, function (meshes) {

			//console.log(meshes);
			naves[0].mesh=meshes[0];

			carga.cargados +=1;

			naves[0].mesh.material = naves[0].material;

			naves[0].mesh.rotation=new BABYLON.Vector3(0, Math.PI/4, 0);
			naves[0].flash.parent=naves[0].mesh;

			camera = new BABYLON.UniversalCamera("UniversalCamera", new BABYLON.Vector3(-10, 50, -10), scene);
			camera.position.x = naves[0].mesh.position.x;
			camera.position.y = naves[0].mesh.position.y+vHol;
			camera.position.z = naves[0].mesh.position.z;
			camera.rotation=new BABYLON.Vector3(0, 0, 0);
			camera.attachControl(canvas, true);
			camera.setTarget(naves[0].mesh.position);

			naves[0].turbina = new BABYLON.ParticleSystem("particles", 200, scene);
			naves[0].turbina.particleTexture = new BABYLON.Texture("sprites/Flare.png", scene);
			naves[0].turbina.textureMask = new BABYLON.Color4(0.1, 0.8, 0.8, 1.0);

			naves[0].turbina.emitter = naves[0].mesh;
			naves[0].turbina.minEmitBox = new BABYLON.Vector3(-4, 0.3, 0); // Starting all from
			naves[0].turbina.maxEmitBox = new BABYLON.Vector3(-4, 0.3, 0); // To...

			naves[0].turbina.color1 = new BABYLON.Color4(0.7, 0.8, 1.0, 1.0);
			naves[0].turbina.color2 = new BABYLON.Color4(0.2, 0.5, 1.0, 1.0);
			naves[0].turbina.colorDead = new BABYLON.Color4(0, 0, 0.0, 0.0);

			naves[0].turbina.minSize = 2;
			naves[0].turbina.maxSize = 5;
			naves[0].turbina.targetStopDuration = 0.15;

			naves[0].turbina.minLifeTime = 0.1;
			naves[0].turbina.maxLifeTime = 0.4;
			naves[0].turbina.emitRate = 50;
			naves[0].turbina.blendMode = BABYLON.ParticleSystem.BLENDMODE_STANDARD;

		});



rotation the ship in loop



canvas.addEventListener("mousemove", function (evt) { // Watch for browser/canvas resize events
	mouseControl.mx = evt.pageX;
	mouseControl.my = evt.pageY;

});

mouseControl.segx += (mouseControl.mx - mouseControl.segx) * mouseControl.easing;
mouseControl.segy += (mouseControl.my - mouseControl.segy) * mouseControl.easing;

yo_mov.rad = Math.atan2(mouseControl.segy - dPantalla.ry, mouseControl.segx - dPantalla.rx);
if(yo_mov.rad < 0)yo_mov.rad+=(Math.PI*2);

	naves[0].mesh.rotation = new BABYLON.Vector3(0, yo_mov.rad+(Math.PI/4), 0);

}



but the probles is before to apply any rotation..

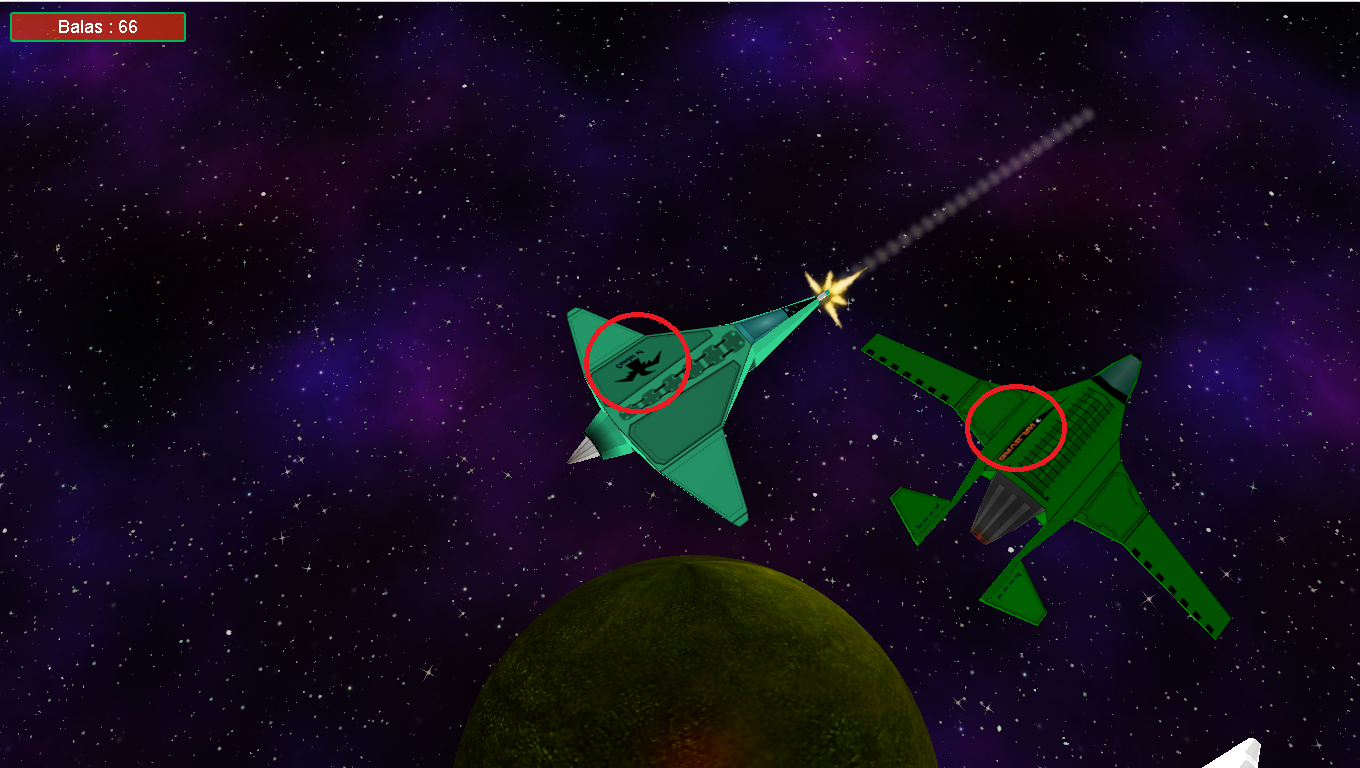

the logos should be on the right wing

[none-9999]

the .obj file

shipEarthOnly.zip

[Pryme8]

19 minutes ago, diyo-games said:

I Did not understand

"  45 minutes ago, Pryme8 said:

Si el sprite está heredando la rotación de mallas, parece que es un elemento secundario de la malla (que si no es una bala no debería ser).

¿Descubriste el problema UV?"


Whoa, I never said that!!! lol no habla espanol

[none-9999]

1 minute ago, Pryme8 said:

"  45 minutes ago, Pryme8 said:

Si el sprite está heredando la rotación de mallas, parece que es un elemento secundario de la malla (que si no es una bala no debería ser).

¿Descubriste el problema UV?"


Whoa, I never said that!!! lol no habla espanol

sorry, traslate...

[Pryme8]

7 minutes ago, diyo-games said:

ok, now

BABYLON.SceneLoader.ImportMesh("","", "naveTierraSolo.obj", scene, function (meshes) {
naves[0].turbina.emitter = naves[0].mesh;



Make a blank mesh that is the parentented to the ship, position it where you want on the ship and set the emitter to that blank mesh instead of the ship.


give that a shot.

[none-9999]

2 minutes ago, Pryme8 said:

Make a blank mesh that is the parentented to the ship, position it where you want on the ship and set the emitter to that blank mesh instead of the ship.


give that a shot.

thereby ?

[none-9999]

I had a turbine that was a mesh, the idea was to make it semi transparent, but it did not work well, that's why I implemented the particle system as a gas jet.



even this problem was already (so far I am reviewing)

[none-9999]

Well, I want to think that this is solved by placing all the objects in a scene, then use the babylon exporter and in the code go through the meshes and create the instances.

For now I will continue with other parts of the development, many thanks

[Pryme8]

https://pryme8.github.io/LSBAG/

A-D for left and right, space to fire.

This shows how to set up a ship with particles like you want.

https://github.com/Pryme8/LSBAG/blob/gh-pages/js/game.js

[none-9999]

great... and it not move ..?
